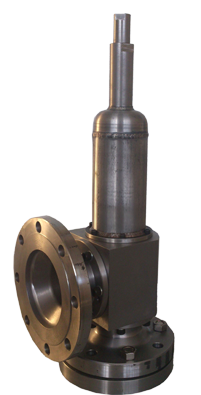

API Safety Valves




Neev Safety valves offer ultimate protection against over pressures in all applications for steam, gases and liquids. Safety valves present a simple safe solution for heavy duty application for steam, gases and liquids.
  • Refineries
  • Chemical industry
  • Petrochemical industry
  • Oil and gas – onshore and offshore
  • Vessels and piping systems
  • Blow – down systems
  • Storage tank farms

GENERAL DESIGN FEATURES

Cover a large variety of types, materials and options to fit any application:
  • Design fully in accordance with API 526 for easy interchangeability
  • API 526 range: valve sizes 1″ through 8″ orifice D through T
  • Materials: WCB,WCC.CF8M, WC6, LCB, LCC, 1.0619 and wide range of special materials to fulfill the requirements of critical applications
  • Special design for high back pressure applications and material requirements far beyond API Standard
  • Fool proof design with fewer parts for built- in safety
  • Integral cast support brackets for easy handling and safe installation
  • One design and spring (single trim) for steam, gas and liquid applications reduces the number of spare parts and ensures low cost maintenance management
  • One– piece spindle reduces friction which leads to high operation accuracy
  • Self – draining body design, avoids any residues and reduces corrosion

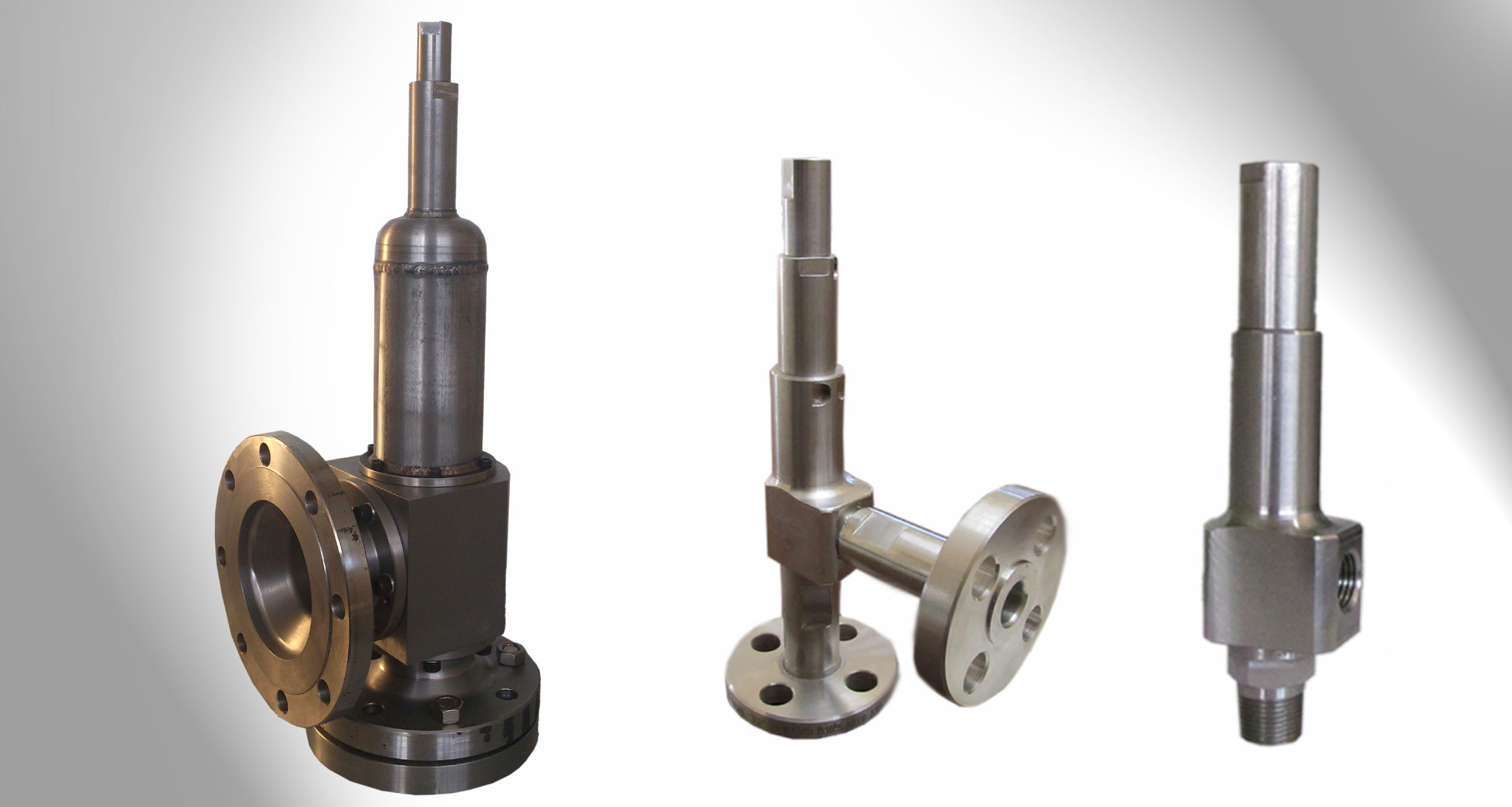

NEEV API Safety Valves

Can be customized with a great variety of options, e. g,:
  • Special connection specified by the customer for optimized adaptation to the plant
  • Stellited or hardened metal sealing for longer product life
  • Soft seat solutions for superior tightness
  • Stainless steel bellows for back pressure compensation
  • Heating jackets for application with high viscosity fluids
  • Every part can be produced in special material exactly to meet customer specification
